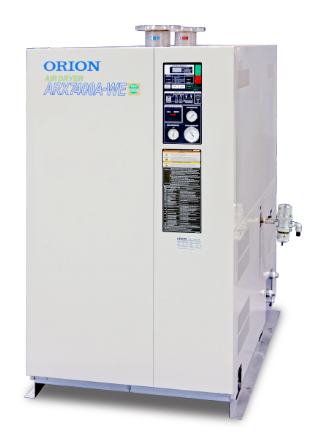

Máy sấy khí ORION- Cỡ lớn

Thương hiệu: Thương hiệu ORION

Tình trạng: Còn hàng

Liên hệ

Operates under ambient temperature of up to 45℃. Large model specialized for high flow rate.

Air processing capacity

Air cooled model ： 23～45 m3/min

Water cooled model ： 29～74 m3/min

Inlet air temperature

10～ 60℃

Features

Air-cooled models

Model		ARX 2300A	ARX 3100A-E	ARX 3500A-E	ARX4500A-E
Air processing capacity	m3/min	23	31	35	45
Inlet air temperature	℃	10～60
Dew point temperature	℃	3～15
Ambient temperature	℃	2～45
Operating air pressure	Mpa	0.29～1.0
External dimensions (Height x Length x Width)	mm	1500ｘ1500ｘ802			1500ｘ1996ｘ850
Mass	kg	323	385	380	470
Pipe connections	FLG	2・1/2B（65A)	3B（80A)		4B (100A)
Dual-Drive Eco System		-	〇
Refrigerant		R407C
Power source		Three-phase 380V (50Hz)
Power consumption	kW	5.6	10		12
Electric current	A	10.5	18		21
Recommended pre-filter		DSF2900A	DSF3500A		DSF5300A

Water-cooled models

Model		ARX 2900A-W	ARX 4100A-WE	ARX 5300A-WE	ARX 7400A-WE
Air processing capacity	m3/min	29	41	53	35
Inlet air temperature	℃	10～60
Dew point temperature	℃	3～15
Ambient temperature	℃	2～45
Operating pressure	Mpa	0.29～1.0
Cooling Water Temperature	℃	2～34
Cooling Water Pressure	Mpa	0.3～0.7
External dimensions (Height x Length x Width)	mm	1500ｘ1000ｘ802	1500ｘ1000ｘ802	1500ｘ1199ｘ850	1620ｘ1654ｘ877
Mass	kg	278	350	395	495
Pipe connections	FLG	2・1/2B（65A)	3B（80A)	4B（100A)
Dual-Drive Eco System		-	〇
Refrigerant		R407C			R410A
Power source		Three-phase 380V (50Hz)
Power consumption	kW	4.2	6.8	9.5	12.5
Electric current	A	8	12.5	17.5	21
Recommended air filter		DSF2900A	DSF4100A	DSF5300A	DSF8000A

*Air processing capacity: Inlet air pressure 0.69MPa, inlet air temperature 50℃, dew point at outlet pressure 10℃, ambient temperature 35℃.
*Corresponding value shown are based on ANR standard and adjusted to "Atmospheric pressure: 30℃/75%RH".
